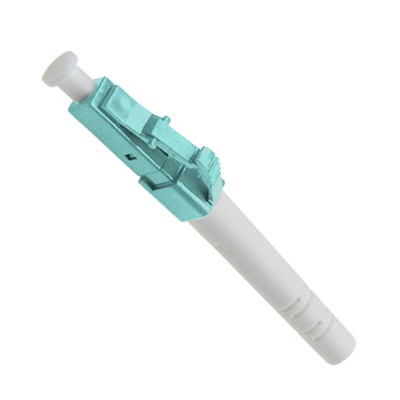

LC Boot Size 2.0 3.0 MM Fiber Optic Connector

LC Boot Size 2.0 3.0 MM Fiber Optic Connector

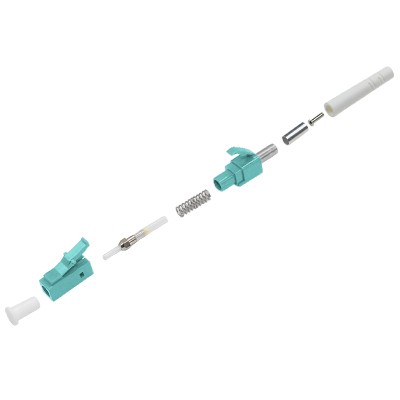

Connector Parts: Dust Cap, Aqua Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Aqua Boot



Fiber Count: Simplex

Insertion Loss: ≤0.3dB

Fiber Mode: Multi Mode

Return Loss:  ≥50dB

Polish Type: PC

Durability: >1000times

Cable Diameter: 2.0mm/3.0mm

Operating Temp:-40~85°C

Customized LC/UPC Boot Size Single Mode/Multimode Fiber Optic Connector

FXK supply various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.

Specification:

parameter	LC 2.0mm/3.0mm Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
