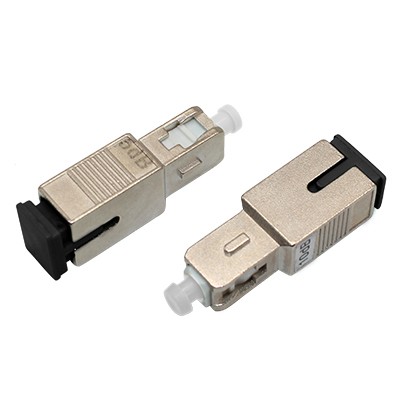

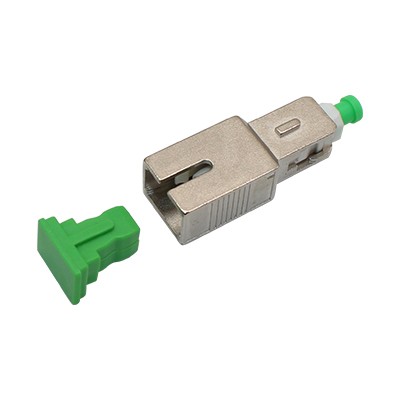

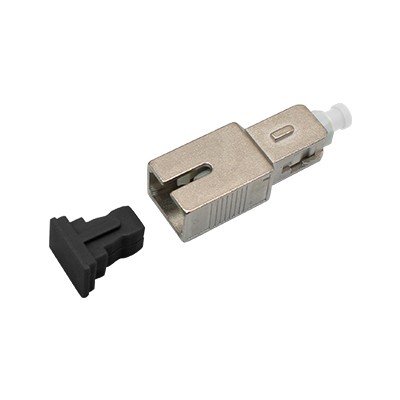

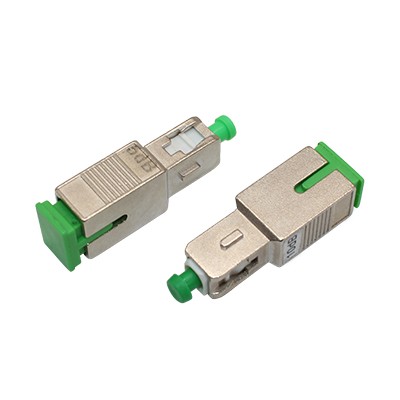

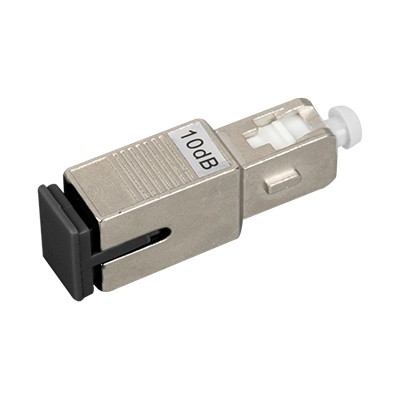

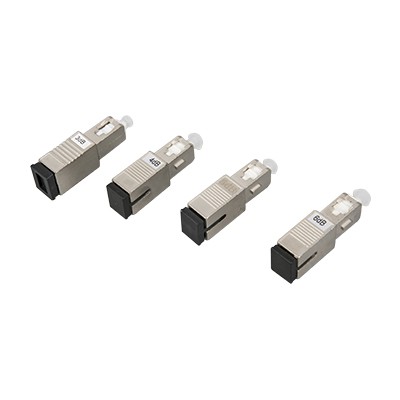

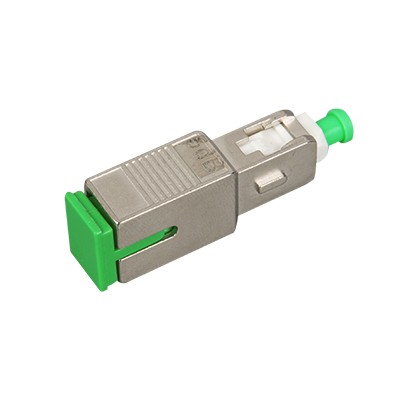

SC Fiber Optical Attenuator
As optical passive devices, FXK attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Specification:
Fiber Connector | SC | Ferrule Type | Zirconia Ceramic |
Connector Gender | Fixed Male to Female | Transfer Mode | Singlemode |
Operating Wavelength(nm) | 1260~1620(SM) | Humidity | 95%RH |
Attenuation Accuracy | ±0.5dB | Return Loss | UPC ≥50dB;APC ≥60dB |
Operating Temperature Range | -40~85°C | Storage Temperature Range | -40~85°C |
Polarization Dependent Loss | ≤0.2dB | ||
Attenuation | 1dB 3dB 5dB 6dB 7dB 10dB 15dB 20dB 25dB | ||
Features
1. Large return loss
2. Low insertion loss
3. Good interchangeability
4. High stability
5. Repeat well
6. Accurate attenuation value
7. Strong tensile resistance
8. Easy installation and operation

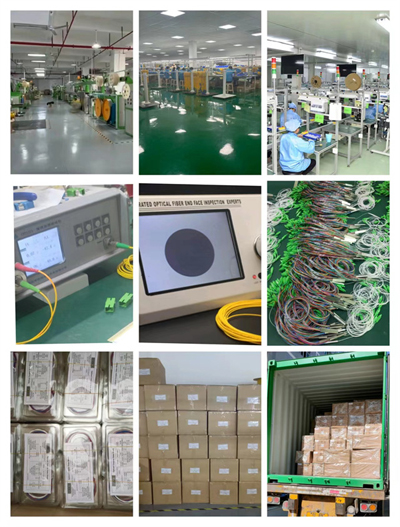

Our Factory:
