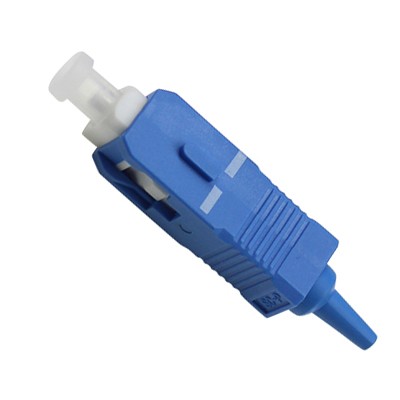

SC Boot Size 9/125 Single-mode Fiber Optic Connector

SC Boot Size 9/125 Single-mode Fiber Optic Connector

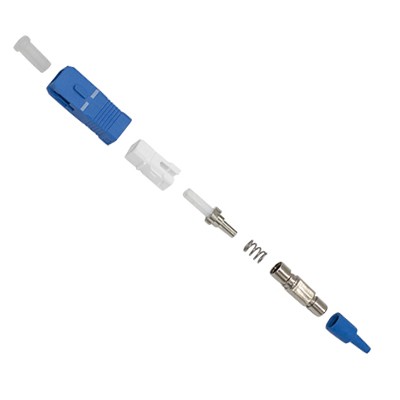

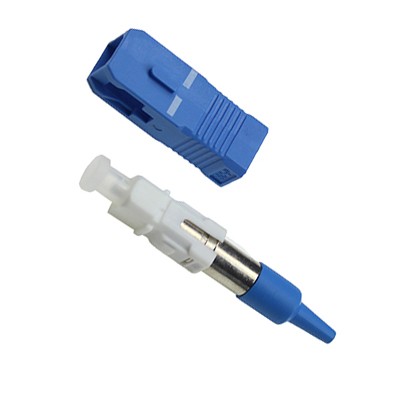

Connector Parts: Dust Cap, Blue Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Blue Boot

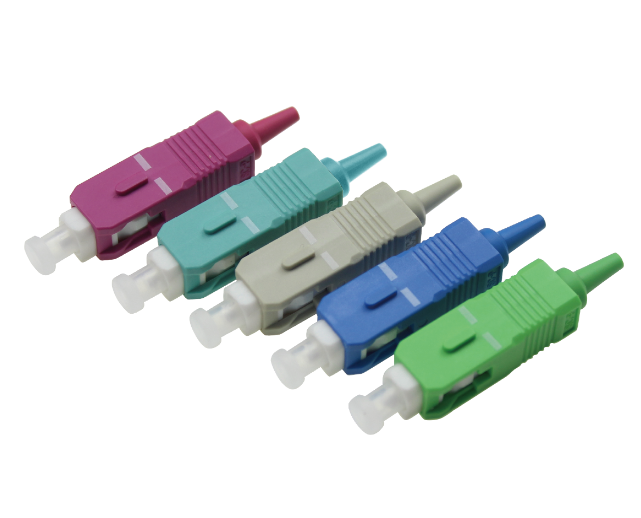

Customized SC/UPC Boot Size Single Mode/Multimode Fiber Optic Connector

FXK supply various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.

Specification:

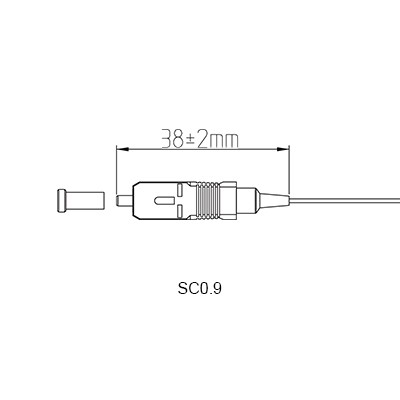

parameter	SC 0.9mm Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule Concentricity	≤1um			≤4um
