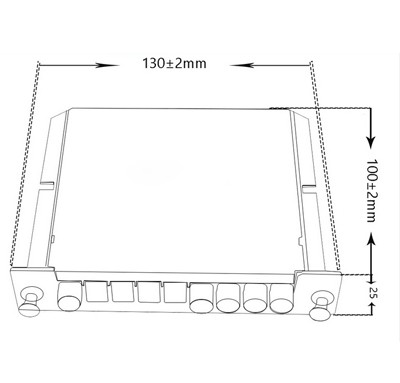

LGX Type PLC splitter

 PLC Fiber Splitter, Mini Module, 900μm, SC/APC, Singlemode PLC splitter is based on the Planar Waveguide Technology. We can provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.

Product Description

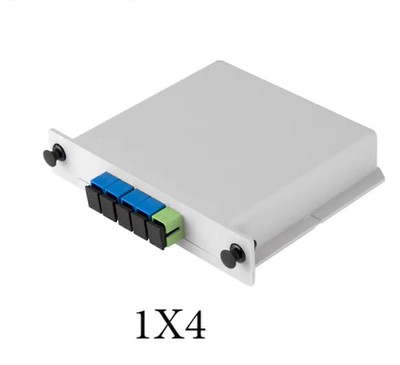

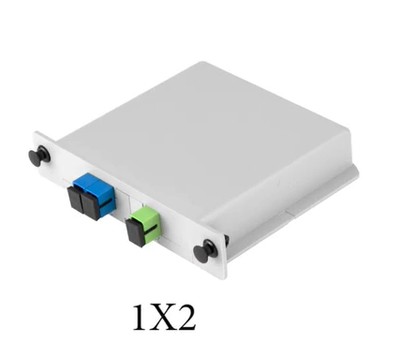

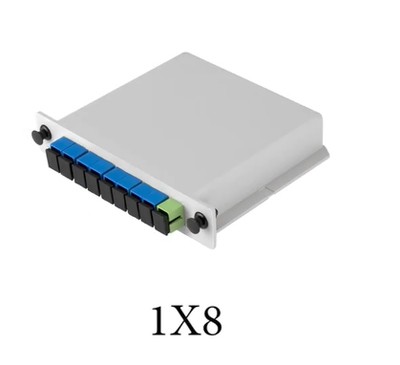

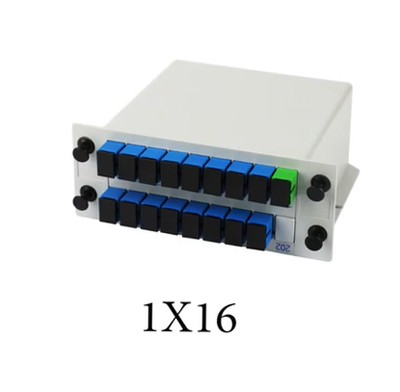

Cassettes type PLC splitter

PLC Splitter Quick Detail:

1. Name: PLC splitter

2. Type: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64

3. Mode: Singlemode

4. Fiber type: G652D, G657A1, G657A2

5. Cable jacket: PVC, LSZH, OFNR, OFNP

6. Cable length: 1M, 1.5m…customized

PLC Splitter Features:

1. Low Insertion loss

2. Wide Operating Wavelength: From 1260nm to 1650nm

3. Excellent Environmental & Mechanical Stability

4. High Reliability and Stability

5. Low PDL (Polarization Dependent Loss)

6. Compact Design

PLC Splitter Applications:

1. FTTX (FTTB, FTTH, FTTC) Systems

2. Passive Optical Network (PON)

3. Cable Television (CATV)

4. Optical Signal Distribution

PLC Splitter Specification:

Table 1 – 1×N PLC Splitter

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS or LGX or Bare fiber type

Table 2 – 2×N PLC Splitter

Parameters	2×2	2×4	2×8	2×16	2×32	2×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)	4.0	7.6	11.0	14.4	17.5	21.0
Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.4	0.5	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS
