Fiber Optic Adapter Duplex SC

Adapter Product Details：FXK offer SC adapter, available in simplex,duplex,adaptor is used to align and join two or more fiber-optic connection, To ensure alignment of two fiber-optic connections.

Product Description

------------------------------------------------------------------------------------

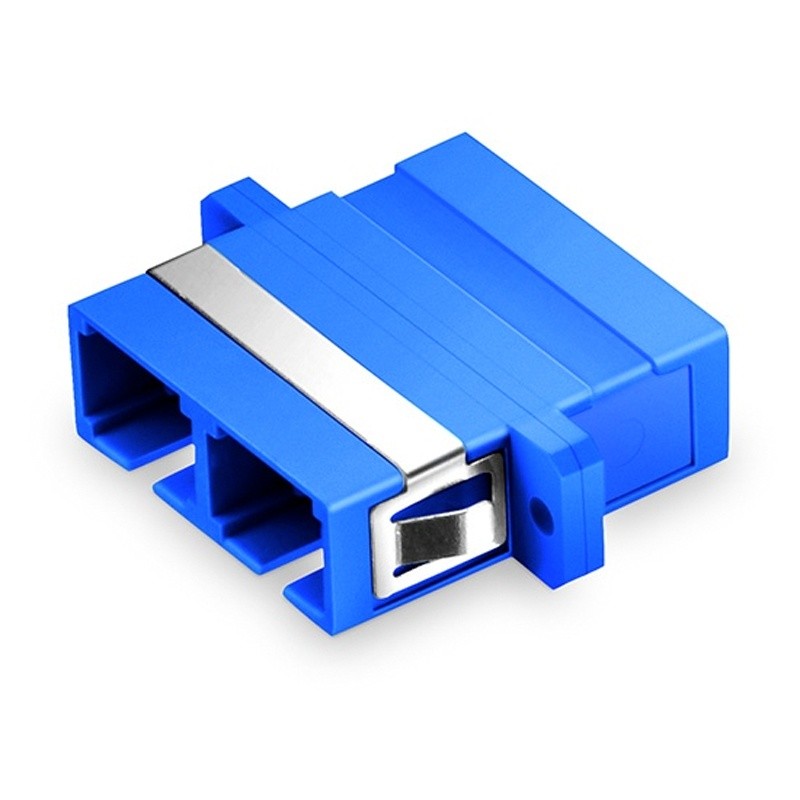

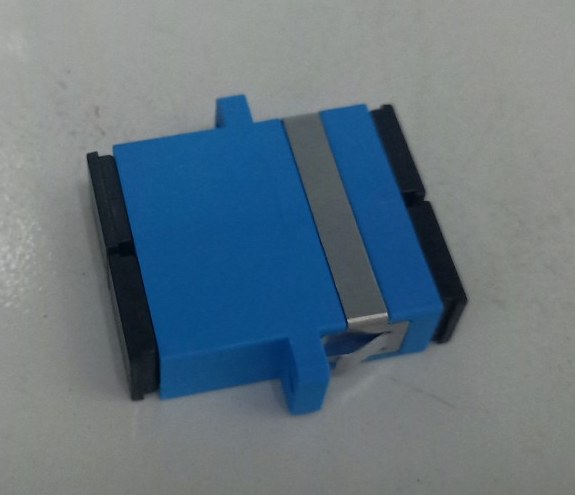

Single Mode Fiber Optic Adapter SC Duplex Adapter

Ftth SC/UPC Single Mode Duplex Optical Fiber Optic Cable Quick Fast Connector Adapter
Single Mode OEM ODM Fiber Optic Adapter Quick Fast Sc Duplex Connector

1.Description

Fiber Optic Adapter is a fiber optic connector for connecting components, fiber optic communication equipment, instruments and so on, the performance is stable and reliable.

The optical fiber is connected by an adapter through an internal aperture sleeve. We provide all kinds of high performance adapter in order to ensure maximum connectivity between the optical fiber jumper.

In order to fixed in various panels, we have designed a variety of fine flange mounting.

2. Specification

Type	SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB)	SM≤0.2dB, MM≤0.3dB
Repeatability(dB)	≤0.1dB
Mechanism Durability(500 cycles, dB)	≤0.2dB
Temperature Range	-40°C-+85°C
Material of sleeve	Zirconia or Bronze

Item	Test Name	Additional Insertion Loss	Additional Return Loss
1	Mechanical durability	<0.2dB	<5dB
2	Repeatability	<0.2dB	<5dB
3	Lock strength	<0.2dB	<5dB
4	Low strength	<0.2dB	<5dB
5	High temperature	<0.2dB	<5dB
6	Steaming	<0.2dB	<5dB
7	Temperature cycle	<0.2dB	<5dB
8	Vibration	<0.2dB	<5dB
9	Drop	<0.2dB	<5dB
