SC/UPC Fast Connector Quick FTTx FTTH Fiber Splicing Connector

SC/UPC Fast Connector Quick FTTx FTTH Fiber Splicing Connector

SC/APC Single Mode 0.9/2.0/3.0mm Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector

Pre-polished Ferrule Fast Connector

Fast connector is factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the field.Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber .All primary fiber types are supported,and each connector′s color per industry standard requirements to aid in identification during and after installation.Incorporated into device is an innovation.

Specification:

Connector Type	SC
Polishing	UPC/APC
Furrule	Ceramic
Fiber Mode	9/125μm Singlemode

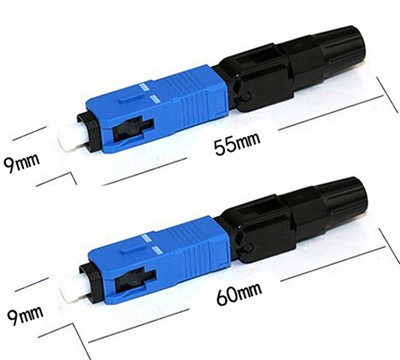

Dimension	55/60mm
Insertion Loss	≤0.35dB
Return Loss	≥55dB
Tension Test	900µm 10N, 2.0mm 20N 3.0mm 50N
Temperature	Storage -40 to 85°C Operating -40 to 85°C
