Termination Splice Fiber Optic Quick Connector SC APC Hot-Melt Fast Connector

Termination Splice Fiber Optic Quick Connector SC APC Hot-Melt Fast Connector

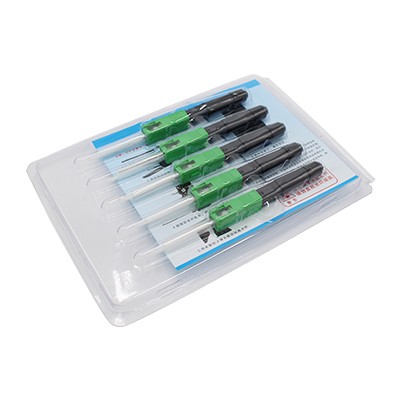

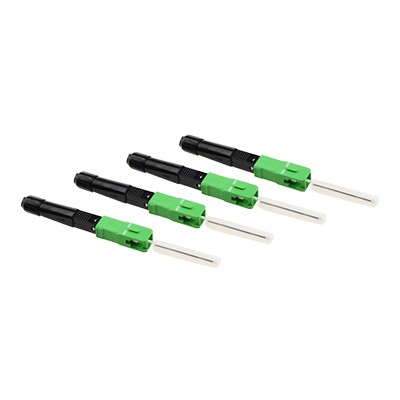

Hot Sales optic fiber fast connector SC UPC FTTH Fibre Fast Connector 1pack 10pcs

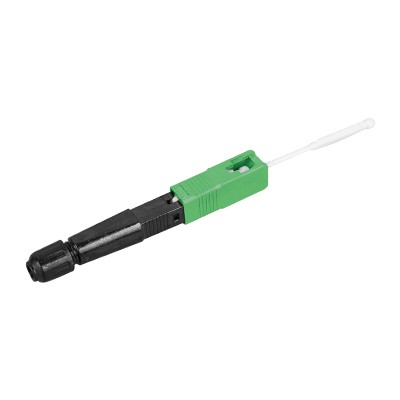

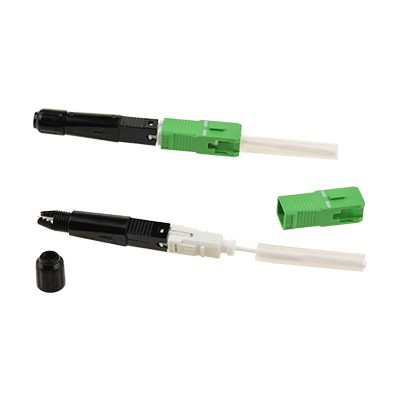

Pre-polished Ferrule SC/APC Fast Connector

Fast connector is factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in the field.Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber .All primary fiber types are supported,and each connector′s color per industry standard requirements to aid in identification during and after installation.Incorporated into device is an innovation.

Specification:

Connector Type	SC
Polishing	UPC/APC
Furrule	Ceramic
Fiber Mode	9/125μm Singlemode
Dimension	55/60mm
Insertion Loss	≤0.35dB
Return Loss	≥55dB
Tension Test	900µm 10N, 2.0mm 20N 3.0mm 50N
Temperature	Storage -40 to 85°C Operating -40 to 85°C
