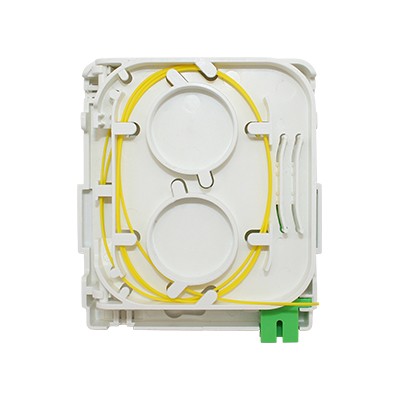

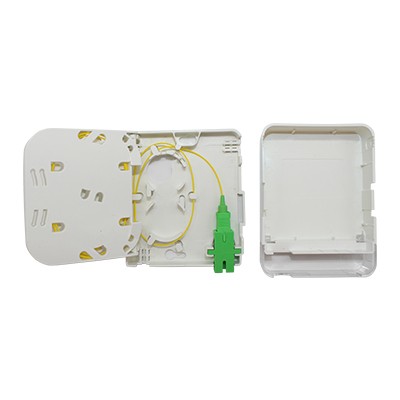

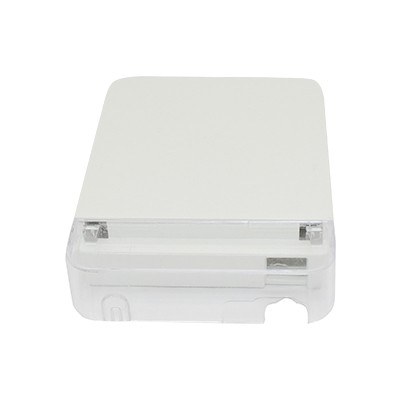

Wall Outlet Termination Box 1 Core

Face Plate is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Easy to operate and has low construction intensity;

*Designed with a large arc shape to ensure that the fiber optic cable placed in it will not be damaged when subjected to external forces, affecting the quality of communication; *For home or work area (FTTD) fiber interface;

*Connecting type: SC, LC with common model adapters;

*Using high-quality ABS material, has a certain fire resistance; *With dustproof device to prevent dust from entering;

*Scope of application 3.0 × 2.0mm drop cable or patch cable.

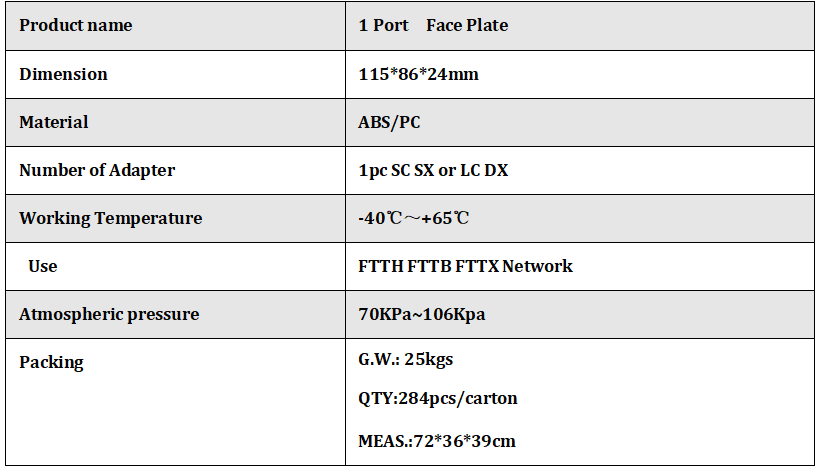

Specification:
