Fiber Sleeves 40mm 60mm

Protection sleeve fiber optic 60mm

Fiber Optic cable protection Sleeve, Shrink tube, Fiber heat shrink tube, Optic Fiber heat shrink tube, Fiber heat shrink tube shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing. The sleeve can be divided into two types (single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function. Mass means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12 cores (for types).

APPLICATION

1. Use the enhanced wire, hot-melt tube and cross-linked polylefin composition 2.Reconstruct the fiber coating 3.Junction to provide a good mechanical strength 4.Ensure good optical transmission properties

FEATURES

1.Good moisture and environmental performance 2.Transparent casing can be connected better before contraction 3.Easily operating to the optical fiber 4.Waterproof, RoHS compliant

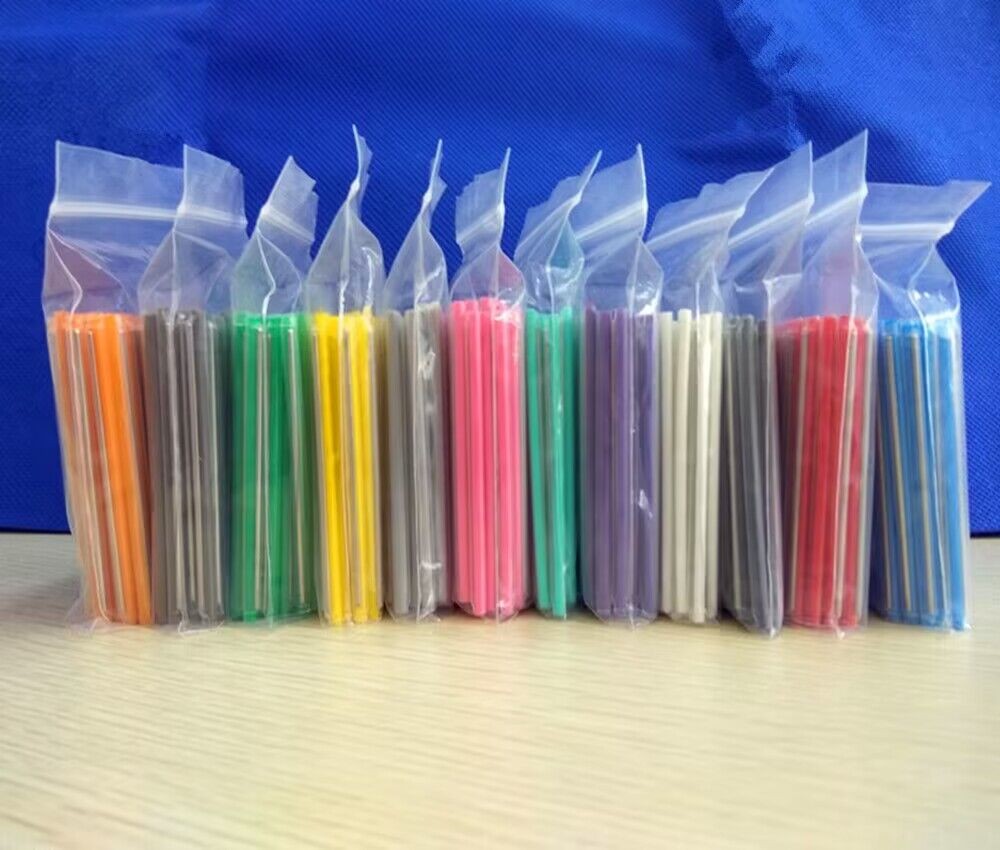

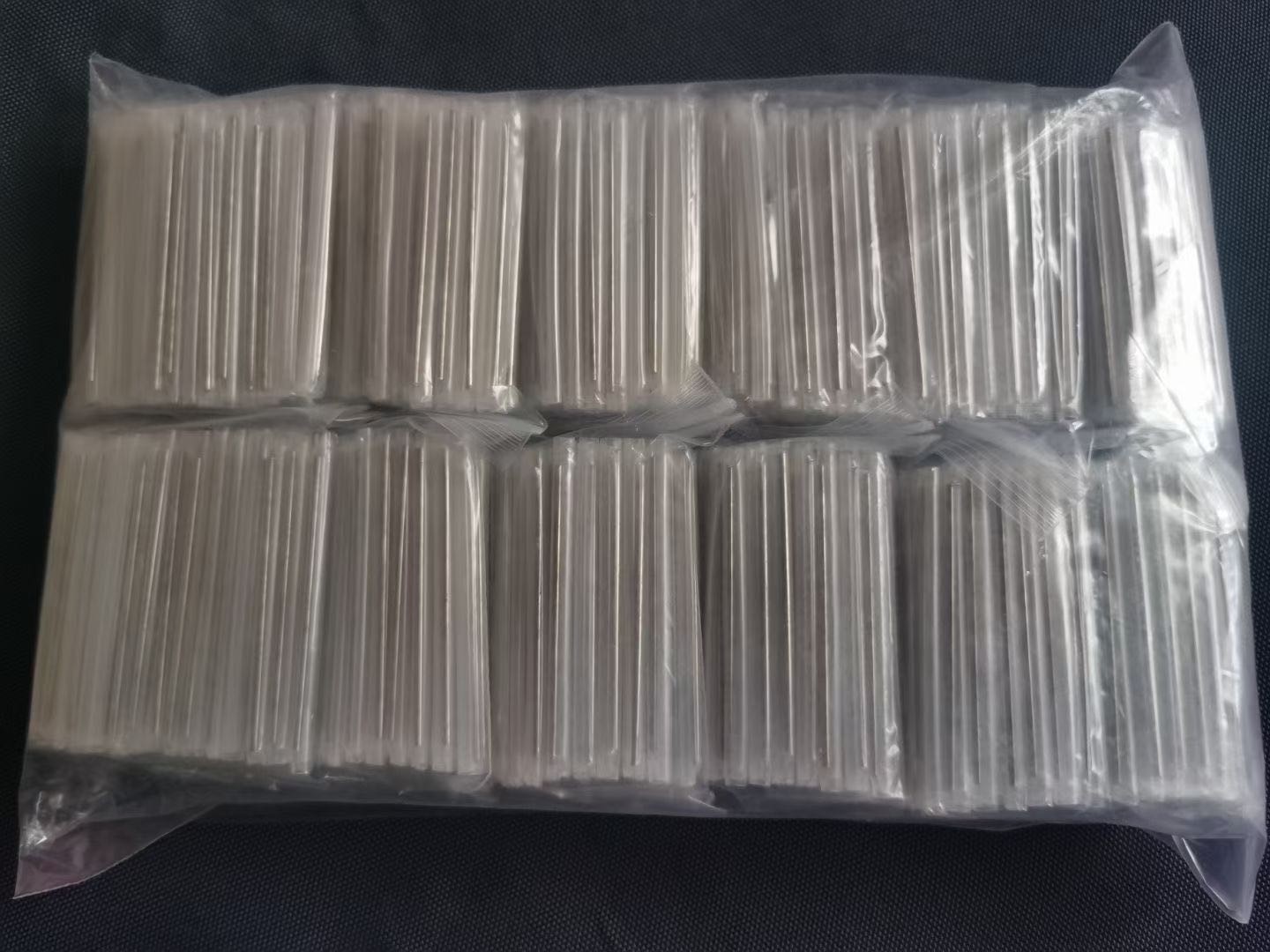

Packing:

100pcs/bag

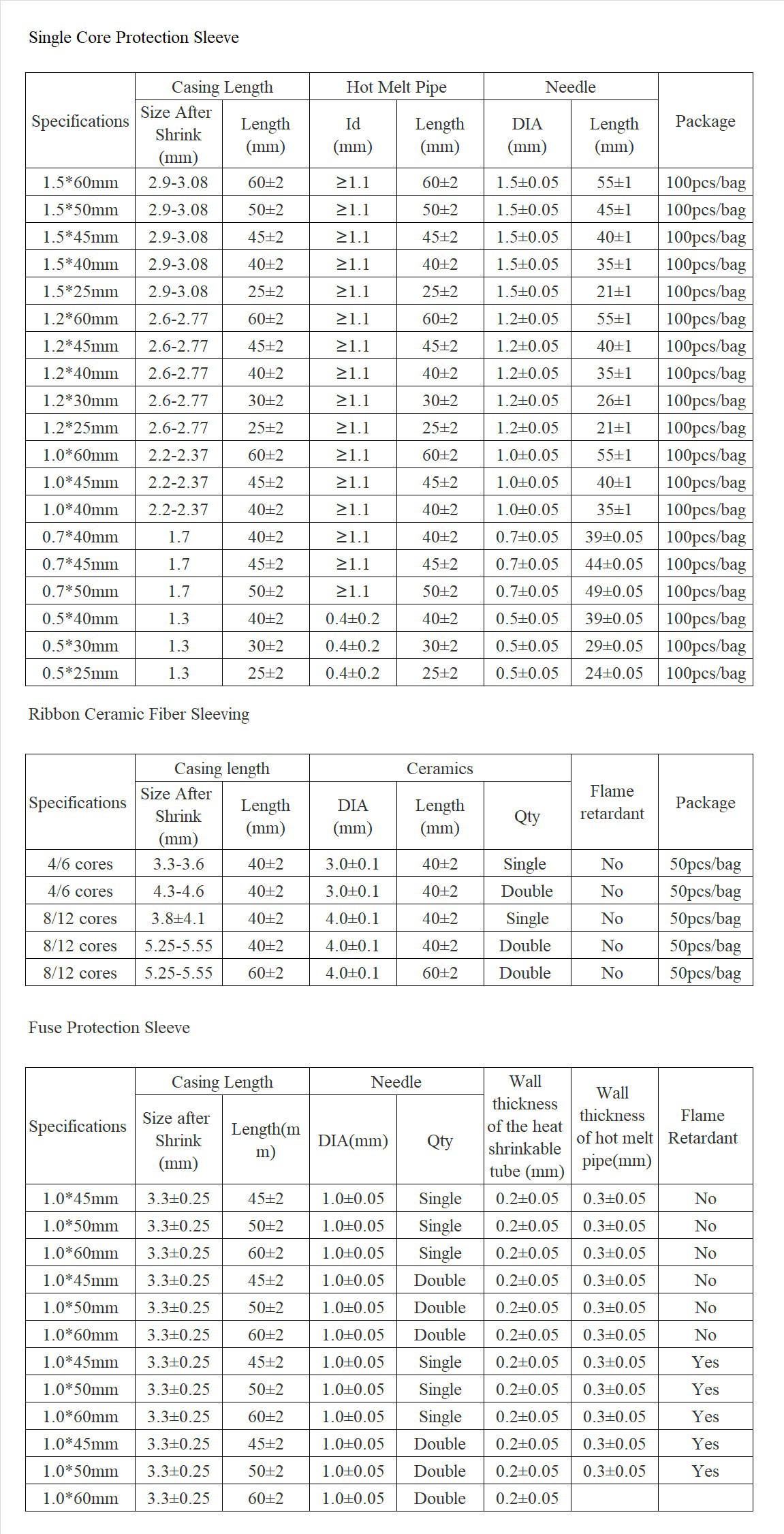

Drawing:
