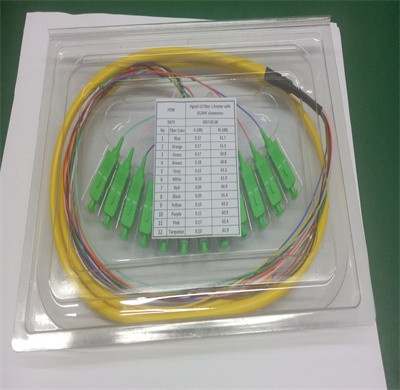

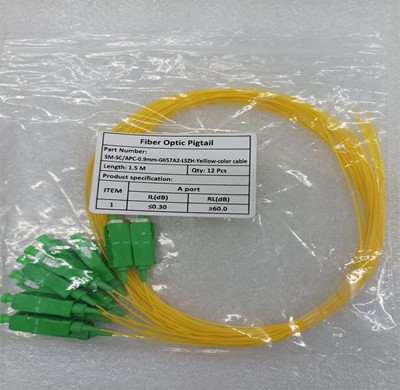

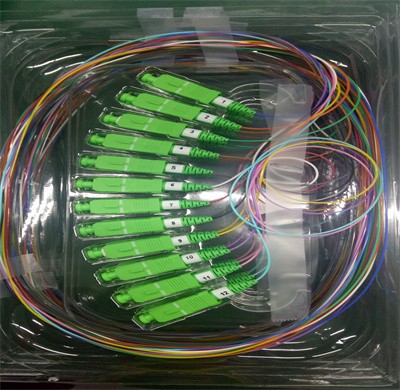

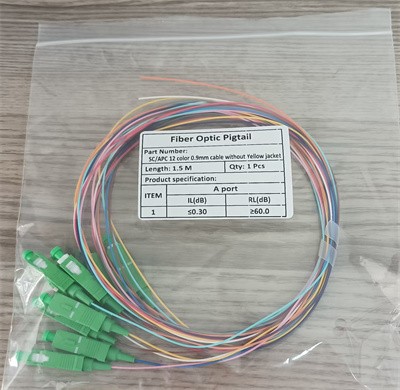

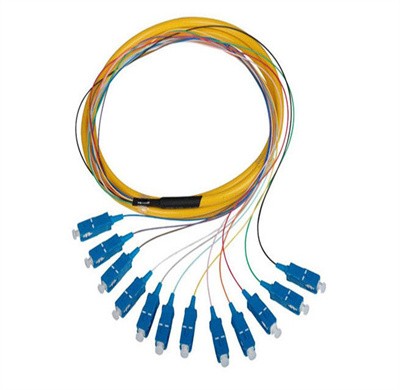

SC 0.9mm 12color Fiber Patch Cord

Product Category：Multifiber Patch Cord & Pigtail Product Details：Product Facts Pre-connectorized multi-fiber cable is becoming more popular for fiber installation project It is definitely an efficient and economical solution rather than on

Multifiber Patch Cord & Pigtails SC/APC SC/UPC

Product Facts:

· Pre-connectorized multi-fiber cable is becoming more popular for fiber installation project

· It is definitely an efficient and economical solution rather than on site termination or splicing

· Designed for administrative convenience-guaranteed transmit-to-receive connectivity

· With pulling eye assembly feature,it's available for fast and safe installation

· Just simply lay the cable and do patching

Specification:

Parameter		Single Mode		Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO
	Ferrule End-face	UPC	APC	UPC
	Insertion Loss	≤0.3dB	≤0.3dB	≤0.3bB
	Return Loss	≥55dB	≥60dB	≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um		127um concentricity deviations:<=3um
	Suitable Fiber	9/125um		50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm	5~12mm	N/A
	Fiber Protrusion	≤50nm	≤100nm	N/A
	Fiber Under Cut	≤100nm	≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.3dB
	Salt Spray	≤0.1dB
	Drop	≤0.3dB(1.5M, 5 drops)
	Vibration	IL ≤0.3dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C
