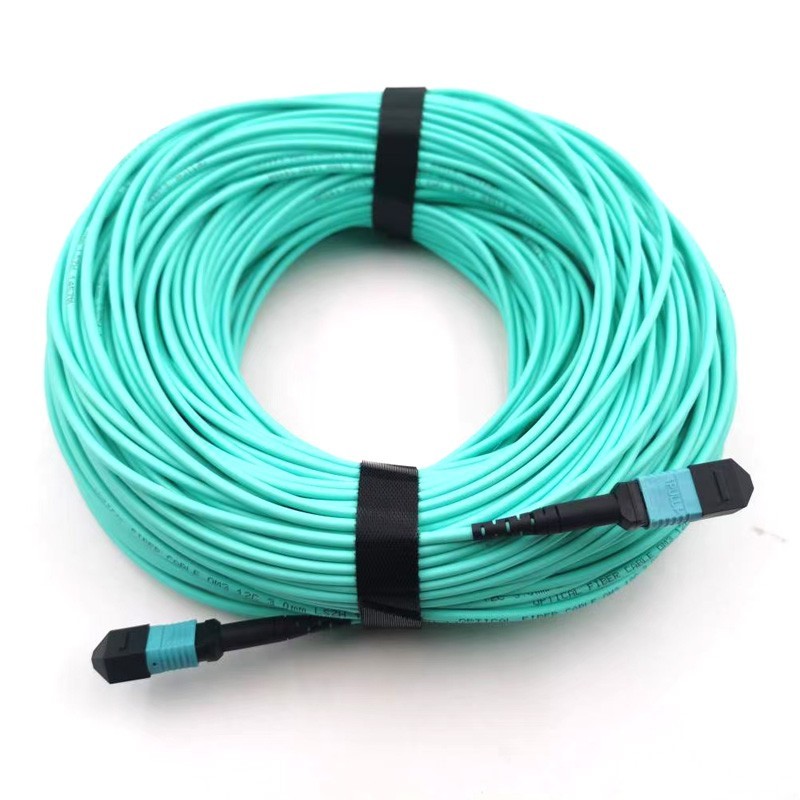

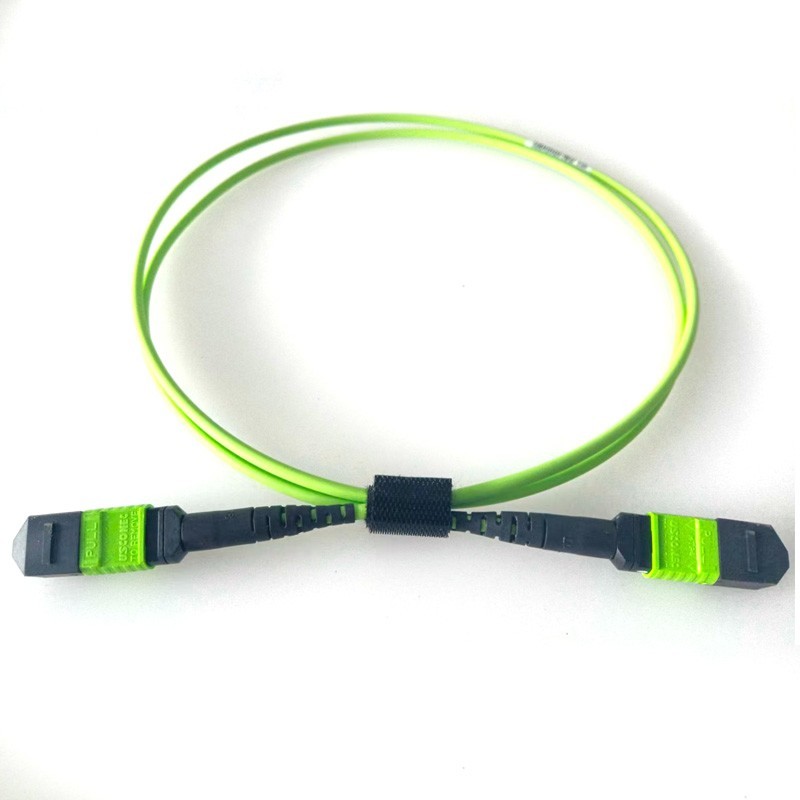

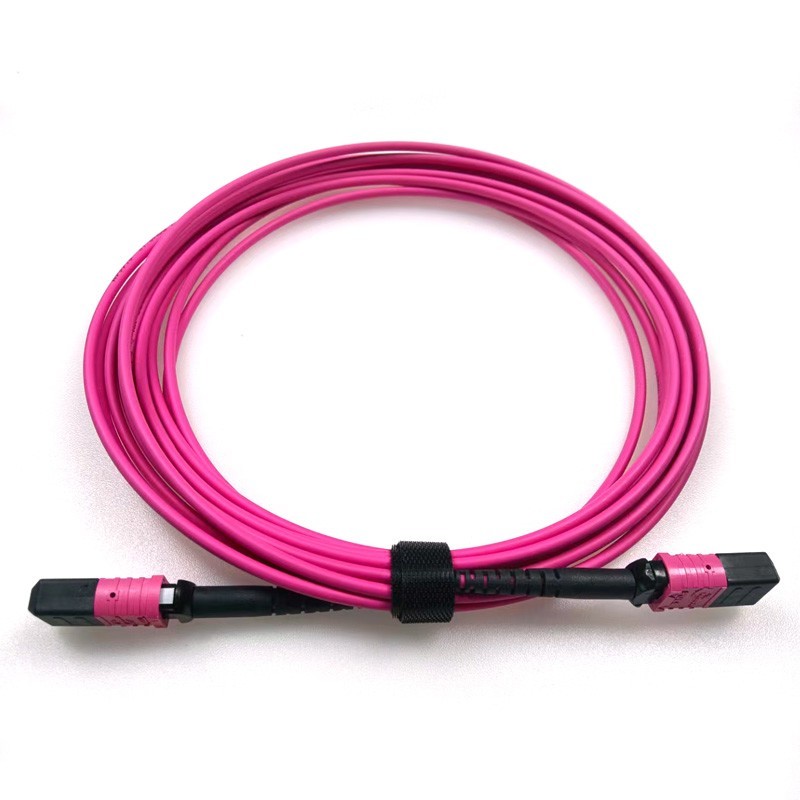

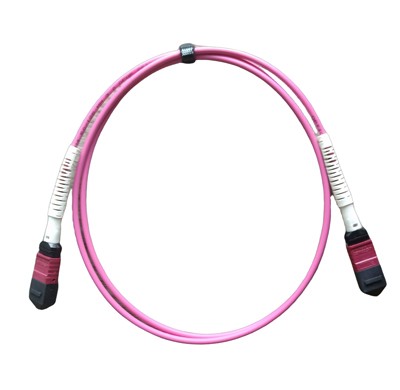

MPO/MTP Jumper OM5 OM4 OM3 SM 12fiber

1.High precision pins for fiber alignment

2.UPC and APC available

3.Save time and cost

4.Material meet ROHS requirement

5.Push/pull mating for quick installation

6.High density and compact size

7.Available SM (angled) and MM (flat)

8.Push-on / Pull-off latching connector

9.Easy connection and disconnection

10.No need for matching material

11.Fiber protrusion

12.Low Insertion loss & Reflection

13.Simple & Low cost

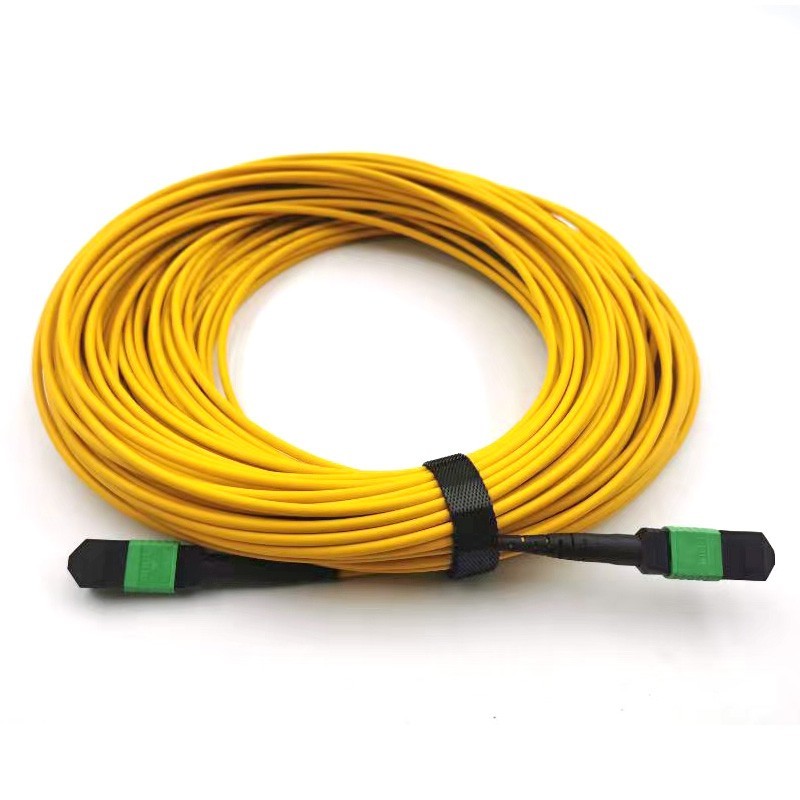

MTP/MPO Patch Cord /Trunk Cable OM5 OM4 OM3 SM 12fiber

1.Description

MPO/MTP is the high dense degree of optical fiber pre-connect system, which is generally use in three areas:

1. The data centra application with high dense degree environment

2. The optical fiber to the building

3. The the internal connector application in fiber equipment such as Splitter, 40G / 100G SFP and SFP+.

2. Specification

Item	SM (APC Polish)		MM (PC Polish)
Fiber Count	8,12,24 etc		8,12,24 etc
Fiber Type	G652D, G657A1,etc		OM1,OM2,OM3,OM4,etc
Insertion Loss	Standard	Elite Low Loss	Standard	Elite Low Loss
	<=0.7dB	<=0.35dB	<=0.5dB	<=0.35dB
Return Loss	>=55dB		>=20dB
Durability	>=200times		>=200times
Test Wavelength	1310/1550nm		850/1300nm
Operating Temperature	-40℃ to +75℃		-40℃ to +75℃
Storage Temperature	-40℃ to +75℃		-40℃ to +75℃
